DatasetSMCHD1_KO_collapsed_to_symbols.SMCHD1_KO.cls
#del_versus_fl.SMCHD1_KO.cls
#del_versus_fl_repos
PhenotypeSMCHD1_KO.cls#del_versus_fl_repos
Upregulated in class0
GeneSetGNF2_RFC4
Enrichment Score (ES)0.5527417
Normalized Enrichment Score (NES)1.8600888
Nominal p-value0.0
FDR q-value0.2461892
FWER p-Value0.88
Table: GSEA Results Summary

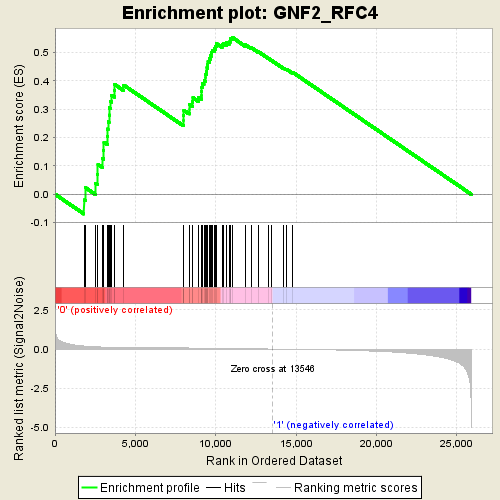

Fig 1: Enrichment plot: GNF2_RFC4
Profile of the Running ES Score & Positions of GeneSet Members on the Rank Ordered List

PROBEGENE SYMBOLGENE_TITLERANK IN GENE LISTRANK METRIC SCORERUNNING ESCORE ENRICHMENT
1GINS1GINS1
Entrez,  Source
GINS complex subunit 1 (Psf1 homolog)18000.195-0.0201Yes
2RPA3RPA3
Entrez,  Source
replication protein A3, 14kDa18860.1840.0236Yes
3TYMSTYMS
Entrez,  Source
thymidylate synthetase25050.1500.0380Yes
4RAD51AP1RAD51AP1
Entrez,  Source
RAD51 associated protein 126260.1460.0706Yes
5SNRPESNRPE
Entrez,  Source
small nuclear ribonucleoprotein polypeptide E26690.1440.1056Yes
6CKS1BCKS1B
Entrez,  Source
CDC28 protein kinase regulatory subunit 1B29420.1250.1271Yes
7NDC8030310.1200.1542Yes
8TTKTTK
Entrez,  Source
TTK protein kinase30420.1190.1841Yes
9PLK4PLK4
Entrez,  Source
polo-like kinase 4 (Drosophila)32510.1080.2035Yes
10PRIM1PRIM1
Entrez,  Source
primase, polypeptide 1, 49kDa32680.1070.2301Yes
11RFC4RFC4
Entrez,  Source
replication factor C (activator 1) 4, 37kDa32990.1050.2557Yes
12TIMELESSTIMELESS
Entrez,  Source
timeless homolog (Drosophila)33610.1020.2794Yes
13GMNNGMNN
Entrez,  Source
geminin, DNA replication inhibitor33700.1020.3051Yes
14DKC1DKC1
Entrez,  Source
dyskeratosis congenita 1, dyskerin34560.0980.3269Yes
15MCM10MCM10
Entrez,  Source
MCM10 minichromosome maintenance deficient 10 (S. cerevisiae)35080.0970.3496Yes
16BIRC5BIRC5
Entrez,  Source
baculoviral IAP repeat-containing 5 (survivin)36910.0900.3654Yes
17SMC4SMC4
Entrez,  Source
structural maintenance of chromosomes 437170.0880.3869Yes
18MCM6MCM6
Entrez,  Source
MCM6 minichromosome maintenance deficient 6 (MIS5 homolog, S. pombe) (S. cerevisiae)42760.0760.3847Yes
19SLBPSLBP
Entrez,  Source
stem-loop (histone) binding protein79950.0730.2595Yes
20CCNA2CCNA2
Entrez,  Source
cyclin A279990.0730.2780Yes
21UBE2CUBE2C
Entrez,  Source
ubiquitin-conjugating enzyme E2C80180.0720.2958Yes
22SMC2SMC2
Entrez,  Source
structural maintenance of chromosomes 283520.0670.3000Yes
23KNTC1KNTC1
Entrez,  Source
kinetochore associated 183540.0670.3171Yes
24CDK185480.0630.3256Yes
25MCM4MCM4
Entrez,  Source
MCM4 minichromosome maintenance deficient 4 (S. cerevisiae)85820.0620.3402Yes
26LIG1LIG1
Entrez,  Source
ligase I, DNA, ATP-dependent89280.0590.3420Yes
27RANBP1RANBP1
Entrez,  Source
RAN binding protein 191000.0570.3498Yes
28SNRPD1SNRPD1
Entrez,  Source
small nuclear ribonucleoprotein D1 polypeptide 16kDa91050.0560.3640Yes
29RRM1RRM1
Entrez,  Source
ribonucleotide reductase M1 polypeptide91370.0560.3770Yes
30CCT2CCT2
Entrez,  Source
chaperonin containing TCP1, subunit 2 (beta)91620.0550.3901Yes
31TOP2ATOP2A
Entrez,  Source
topoisomerase (DNA) II alpha 170kDa92700.0540.3998Yes
32PAICSPAICS
Entrez,  Source
phosphoribosylaminoimidazole carboxylase, phosphoribosylaminoimidazole succinocarboxamide synthetase93430.0530.4105Yes
33MLH1MLH1
Entrez,  Source
mutL homolog 1, colon cancer, nonpolyposis type 2 (E. coli)93470.0530.4238Yes
34SSRP1SSRP1
Entrez,  Source
structure specific recognition protein 194290.0520.4338Yes
35CCNB2CCNB2
Entrez,  Source
cyclin B294530.0510.4459Yes
36SUPT16HSUPT16H
Entrez,  Source
suppressor of Ty 16 homolog (S. cerevisiae)95060.0500.4568Yes
37MSH2MSH2
Entrez,  Source
mutS homolog 2, colon cancer, nonpolyposis type 1 (E. coli)95160.0500.4692Yes
38MCM3MCM3
Entrez,  Source
MCM3 minichromosome maintenance deficient 3 (S. cerevisiae)96110.0490.4780Yes
39KIF11KIF11
Entrez,  Source
kinesin family member 1196520.0480.4888Yes
40ASPMASPM
Entrez,  Source
asp (abnormal spindle) homolog, microcephaly associated (Drosophila)97110.0470.4986Yes
41H2AFZH2AFZ
Entrez,  Source
H2A histone family, member Z97660.0470.5084Yes
42FANCIFANCI
Entrez,  Source
Fanconi anemia, complementation group I99240.0450.5137Yes
43MCM7MCM7
Entrez,  Source
MCM7 minichromosome maintenance deficient 7 (S. cerevisiae)99930.0440.5222Yes
44RANRAN
Entrez,  Source
RAN, member RAS oncogene family100620.0430.5304Yes
45MSH6MSH6
Entrez,  Source
mutS homolog 6 (E. coli)103950.0380.5272Yes
46RFC5RFC5
Entrez,  Source
replication factor C (activator 1) 5, 36.5kDa105010.0370.5325Yes
47MCM2MCM2
Entrez,  Source
MCM2 minichromosome maintenance deficient 2, mitotin (S. cerevisiae)106800.0340.5344Yes
48ITGB3BPITGB3BP
Entrez,  Source
integrin beta 3 binding protein (beta3-endonexin)108290.0320.5369Yes
49NCAPD2NCAPD2
Entrez,  Source
non-SMC condensin I complex, subunit D2108920.0320.5425Yes
50PCNAPCNA
Entrez,  Source
proliferating cell nuclear antigen109390.0310.5487Yes
51RFC3RFC3
Entrez,  Source
replication factor C (activator 1) 3, 38kDa110330.0300.5527Yes
52FOXM1FOXM1
Entrez,  Source
forkhead box M1118220.0210.5276No
53CKS2CKS2
Entrez,  Source
CDC28 protein kinase regulatory subunit 2122170.0160.5164No
54FEN1FEN1
Entrez,  Source
flap structure-specific endonuclease 1126460.0110.5026No
55CTPSCTPS
Entrez,  Source
CTP synthase132960.0030.4783No
56CENPFCENPF
Entrez,  Source
centromere protein F, 350/400ka (mitosin)134660.0010.4720No
57ZWINTZWINT
Entrez,  Source
ZW10 interactor14235-0.0080.4444No
58GINS2GINS2
Entrez,  Source
GINS complex subunit 2 (Psf2 homolog)14397-0.0110.4409No
59RAD54LRAD54L
Entrez,  Source
RAD54-like (S. cerevisiae)14784-0.0160.4301No
Table: GSEA details [plain text format]

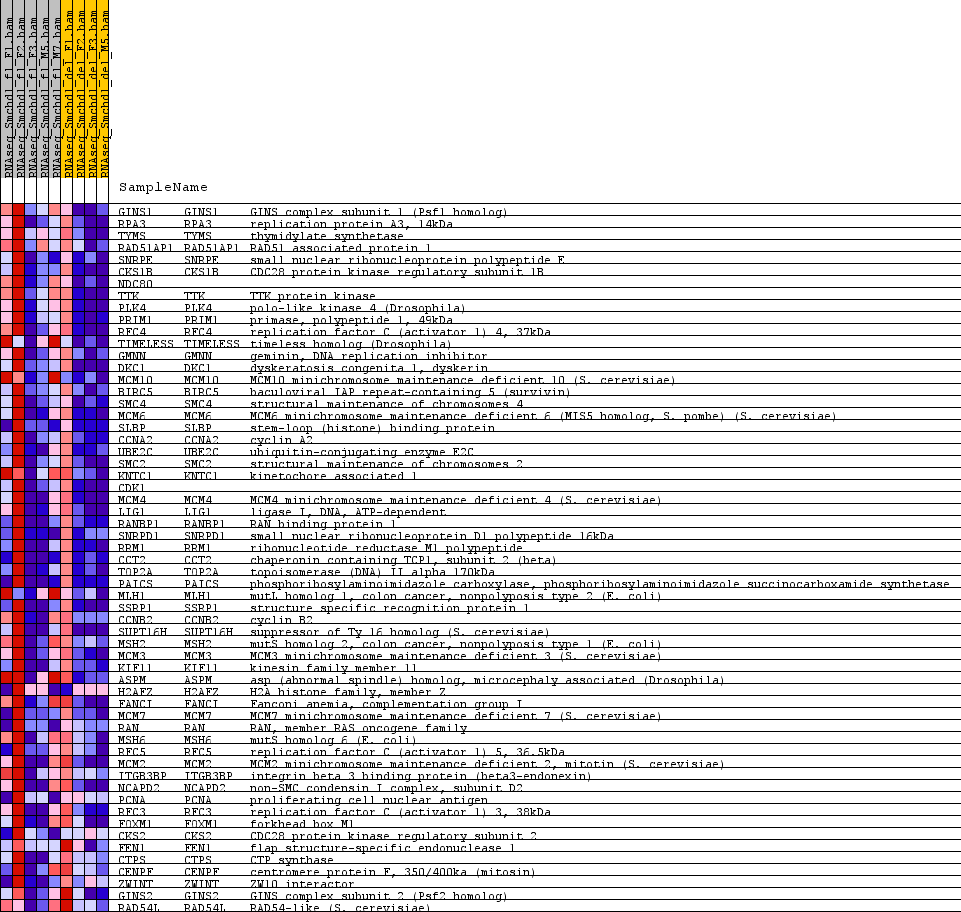

Fig 2: GNF2_RFC4
Blue-Pink O' Gram in the Space of the Analyzed GeneSet

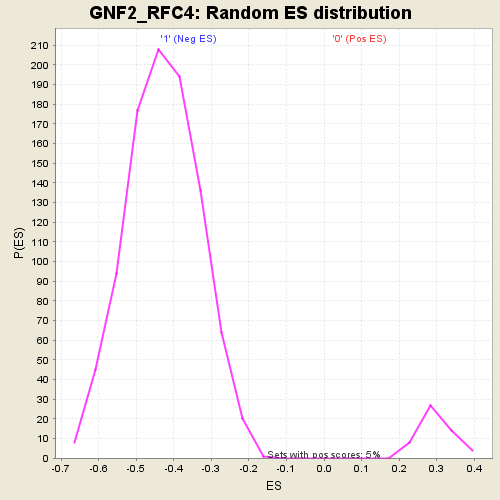

Fig 3: GNF2_RFC4: Random ES distribution
Gene set null distribution of ES for GNF2_RFC4
