Details for gene set WP_ELECTRON_TRANSPORT_CHAIN[GSEA]

Table: GSEA Results Summary

Dataset	KO_vs_WT.KO_vs_WT.cls#KO_versus_WT.KO_vs_WT.cls#KO_versus_WT_repos
Phenotype	KO_vs_WT.cls#KO_versus_WT_repos
Upregulated in class	WT
GeneSet	WP_ELECTRON_TRANSPORT_CHAIN
Enrichment Score (ES)	-0.61100525
Normalized Enrichment Score (NES)	-1.5594299
Nominal p-value	0.10220441
FDR q-value	0.24542443
FWER p-Value	0.661

Fig 1: Enrichment plot: WP_ELECTRON_TRANSPORT_CHAIN
Profile of the Running ES Score & Positions of GeneSet Members on the Rank Ordered List

Table: GSEA details [plain text format]

	SYMBOL	TITLE	RANK IN GENE LIST	RANK METRIC SCORE	RUNNING ES	CORE ENRICHMENT
1	Ucp2	Ucp2	1901	0.665	-0.0564	No
2	Slc25a14	Slc25a14	2749	0.547	-0.0741	No
3	Slc25a27	Slc25a27	3681	0.454	-0.0979	No
4	Atp5if1	Atp5if1	6063	0.294	-0.1844	No
5	Cox8a	Cox8a	7227	0.234	-0.2240	No
6	Ndufs5	Ndufs5	7244	0.233	-0.2178	No
7	Cox7a2l	Cox7a2l	7916	0.202	-0.2387	No
8	Cox6a1	Cox6a1	8019	0.198	-0.2369	No
9	Ucp1	Ucp1	8851	0.164	-0.2653	No
10	Ucp3	Ucp3	10261	0.108	-0.3184	No
11	Ndufa2	Ndufa2	10991	0.080	-0.3452	No
12	Slc25a5	Slc25a5	11543	0.060	-0.3655	No
13	Cox17	Cox17	11983	0.045	-0.3817	No
14	mt-Nd3	mt-Nd3	13338	-0.003	-0.4357	No
15	Ndufb9	Ndufb9	14638	-0.050	-0.4862	No
16	Ndufb3	Ndufb3	15731	-0.089	-0.5272	No
17	Ndufa6	Ndufa6	16146	-0.104	-0.5407	No
18	Ndufa12	Ndufa12	16223	-0.107	-0.5406	No
19	Sco1	Sco1	17205	-0.145	-0.5755	No
20	Atp5pd	Atp5pd	17242	-0.146	-0.5727	No
21	Cox7a2	Cox7a2	17277	-0.147	-0.5697	No
22	Cox4i1	Cox4i1	18051	-0.180	-0.5952	No
23	Ndufb6	Ndufb6	18108	-0.183	-0.5921	No
24	Uqcr11	Uqcr11	18582	-0.203	-0.6050	Yes
25	mt-Nd5	mt-Nd5	18664	-0.207	-0.6022	Yes
26	Ndufb5	Ndufb5	18694	-0.208	-0.5972	Yes
27	Ndufb4	Ndufb4	18722	-0.209	-0.5921	Yes
28	mt-Cytb	mt-Cytb	18987	-0.220	-0.5962	Yes
29	Atp5mf	Atp5mf	19251	-0.232	-0.5998	Yes
30	Ndufv1	Ndufv1	19255	-0.232	-0.5931	Yes
31	Ndufb7	Ndufb7	19272	-0.233	-0.5868	Yes
32	Uqcr10	Uqcr10	19478	-0.243	-0.5879	Yes
33	Ndufb2	Ndufb2	19573	-0.249	-0.5843	Yes
34	Uqcrh	Uqcrh	19607	-0.251	-0.5782	Yes
35	Dmac2l	Dmac2l	19800	-0.261	-0.5782	Yes
36	Surf1	Surf1	20068	-0.274	-0.5808	Yes
37	mt-Nd4	mt-Nd4	20257	-0.284	-0.5800	Yes
38	Ndufb10	Ndufb10	20376	-0.291	-0.5761	Yes
39	Atp5f1e	Atp5f1e	20386	-0.292	-0.5679	Yes
40	Ndufa8	Ndufa8	20551	-0.301	-0.5655	Yes
41	Ndufa7	Ndufa7	20640	-0.306	-0.5600	Yes
42	Uqcrq	Uqcrq	20690	-0.309	-0.5529	Yes
43	Ndufa1	Ndufa1	20976	-0.325	-0.5547	Yes
44	Atp5f1d	Atp5f1d	21000	-0.327	-0.5460	Yes
45	Ndufs2	Ndufs2	21015	-0.328	-0.5369	Yes
46	Cox15	Cox15	21019	-0.328	-0.5273	Yes
47	Ndufc1	Ndufc1	21055	-0.331	-0.5190	Yes
48	Sdhd	Sdhd	21102	-0.334	-0.5110	Yes
49	Sdhb	Sdhb	21130	-0.335	-0.5022	Yes
50	Ndufs8	Ndufs8	21196	-0.339	-0.4948	Yes
51	mt-Atp8	mt-Atp8	21223	-0.340	-0.4858	Yes
52	Ndufa9	Ndufa9	21507	-0.361	-0.4865	Yes
53	Atp5mg	Atp5mg	21756	-0.379	-0.4852	Yes
54	mt-Nd4l	mt-Nd4l	21761	-0.379	-0.4742	Yes
55	Uqcrfs1	Uqcrfs1	21770	-0.380	-0.4633	Yes
56	Atp5pf	Atp5pf	22184	-0.413	-0.4676	Yes
57	Ndufs4	Ndufs4	22189	-0.413	-0.4556	Yes
58	Cox6c	Cox6c	22235	-0.417	-0.4451	Yes
59	Cox5b	Cox5b	22296	-0.423	-0.4350	Yes
60	Atp5po	Atp5po	22300	-0.423	-0.4227	Yes
61	Atp5f1c	Atp5f1c	22331	-0.426	-0.4113	Yes
62	mt-Nd2	mt-Nd2	22361	-0.428	-0.3999	Yes
63	Ndufs7	Ndufs7	22365	-0.429	-0.3873	Yes
64	Ndufb4c	Ndufb4c	22367	-0.429	-0.3747	Yes
65	Ndufab1	Ndufab1	22449	-0.437	-0.3651	Yes
66	Cox7b	Cox7b	22571	-0.450	-0.3567	Yes
67	Ndufv2	Ndufv2	22598	-0.453	-0.3444	Yes
68	Ndufc2	Ndufc2	22783	-0.473	-0.3378	Yes
69	Cox5a	Cox5a	22788	-0.474	-0.3239	Yes
70	Ndufs6	Ndufs6	22803	-0.475	-0.3105	Yes
71	mt-Co1	mt-Co1	22956	-0.493	-0.3020	Yes
72	mt-Nd1	mt-Nd1	22962	-0.494	-0.2876	Yes
73	Slc25a4	Slc25a4	23038	-0.501	-0.2759	Yes
74	Ndufv3	Ndufv3	23094	-0.507	-0.2631	Yes
75	Atp5mc2	Atp5mc2	23095	-0.508	-0.2481	Yes
76	Uqcrb	Uqcrb	23114	-0.510	-0.2338	Yes
77	Atp5f1b	Atp5f1b	23271	-0.531	-0.2244	Yes
78	Atp5f1a	Atp5f1a	23289	-0.533	-0.2094	Yes
79	Ndufa10	Ndufa10	23347	-0.542	-0.1957	Yes
80	Uqcrc2	Uqcrc2	23430	-0.554	-0.1826	Yes
81	mt-Nd6	mt-Nd6	23508	-0.564	-0.1691	Yes
82	Cox6a2	Cox6a2	23579	-0.577	-0.1548	Yes
83	Atp5mc3	Atp5mc3	23756	-0.610	-0.1439	Yes
84	Uqcrc1	Uqcrc1	23772	-0.613	-0.1264	Yes
85	mt-Co3	mt-Co3	23773	-0.613	-0.1083	Yes
86	Ndufa5	Ndufa5	23782	-0.615	-0.0905	Yes
87	Ndufs1	Ndufs1	23812	-0.621	-0.0734	Yes
88	Atp5pb	Atp5pb	23879	-0.633	-0.0573	Yes
89	mt-Co2	mt-Co2	23890	-0.636	-0.0390	Yes
90	Sdha	Sdha	24002	-0.667	-0.0238	Yes
91	mt-Atp6	mt-Atp6	24010	-0.668	-0.0044	Yes
92	Sdhc	Sdhc	24383	-0.786	0.0039	Yes
93	Cox7a1	Cox7a1	24535	-0.847	0.0229	Yes

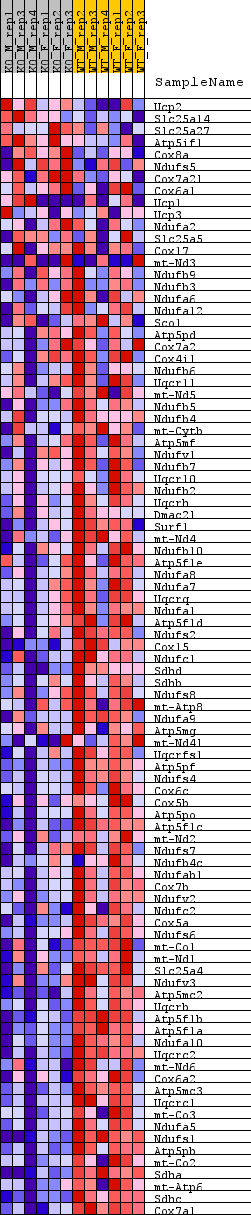

Fig 2: WP_ELECTRON_TRANSPORT_CHAIN
Blue-Pink O' Gram in the Space of the Analyzed GeneSet

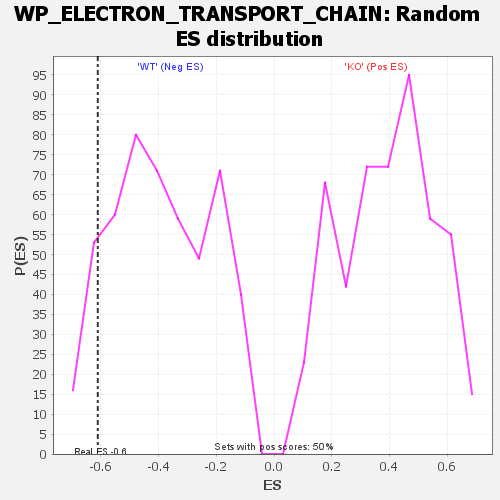

Fig 3: WP_ELECTRON_TRANSPORT_CHAIN: Random ES distribution
Gene set null distribution of ES for WP_ELECTRON_TRANSPORT_CHAIN
