Details for gene set BIOCARTA_TOLL_PATHWAY[GSEA]

Table: GSEA Results Summary

Dataset	RPKM_matrix___Cyp2c44KO_vs_WT.RPKM_matrix___Cyp2c44KO_vs_WT.cls #Cyp2c44KO_versus_WT
Phenotype	RPKM_matrix___Cyp2c44KO_vs_WT.cls#Cyp2c44KO_versus_WT
Upregulated in class	Cyp2c44KO
GeneSet	BIOCARTA_TOLL_PATHWAY
Enrichment Score (ES)	0.67505527
Normalized Enrichment Score (NES)	1.3407416
Nominal p-value	0.030592734
FDR q-value	1.0
FWER p-Value	0.564

Fig 1: Enrichment plot: BIOCARTA_TOLL_PATHWAY
Profile of the Running ES Score & Positions of GeneSet Members on the Rank Ordered List

Table: GSEA details [plain text format]

	SYMBOL	TITLE	RANK IN GENE LIST	RANK METRIC SCORE	RUNNING ES	CORE ENRICHMENT
1	Jun	na	157	1.020	0.1739	Yes
2	Nfkbia	na	2181	0.530	0.2297	Yes
3	Fos	na	2187	0.529	0.3213	Yes
4	Elk1	na	2333	0.517	0.4083	Yes
5	Ppara	na	3794	0.409	0.4532	Yes
6	Ikbkg	na	4333	0.376	0.5087	Yes
7	Ikbkb	na	5353	0.323	0.5466	Yes
8	Nfkb1	na	6802	0.262	0.5663	Yes
9	Mapk8	na	6919	0.258	0.6088	Yes
10	Chuk	na	8968	0.183	0.6042	Yes
11	Map3k7	na	9173	0.176	0.6310	Yes
12	Map2k4	na	9927	0.151	0.6438	Yes
13	Eif2ak2	na	10723	0.126	0.6514	Yes
14	Mapk14	na	11085	0.115	0.6650	Yes
15	Traf6	na	11514	0.102	0.6751	Yes
16	Pglyrp1	na	13048	0.061	0.6584	No
17	Rela	na	13587	0.049	0.6573	No
18	Map3k1	na	15852	0.016	0.6198	No
19	Map3k14	na	18717	0.000	0.5691	No
20	Map2k6	na	46783	-0.007	0.0722	No
21	Irak1	na	47119	-0.014	0.0687	No
22	Myd88	na	48947	-0.067	0.0480	No
23	Map2k3	na	52430	-0.205	0.0217	No
24	Ecsit	na	53860	-0.279	0.0447	No

Fig 2: BIOCARTA_TOLL_PATHWAY
Blue-Pink O' Gram in the Space of the Analyzed GeneSet

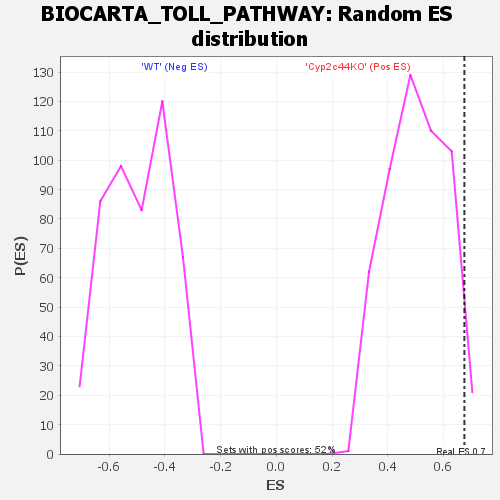

Fig 3: BIOCARTA_TOLL_PATHWAY: Random ES distribution
Gene set null distribution of ES for BIOCARTA_TOLL_PATHWAY
